Bison CarbonLite Composite Volleyball Complete System
$8,732.00
Bison CarbonLite Composite Volleyball Complete System
The Bison CarbonMax Composite Volleyball System is the only carbon fiber volleyball system with a crank style internal net height adjustment feature for easy and accurate net fine tuning. Built on a 3-1/2" carbon fiber post with a 3" diameter aluminum inner tube and a thick gloss resin finish, the CarbonMax achieves a post deflection of just 0.98" at 250 lb net tension. Posts weigh 32 lbs (non-winch end) and 37 lbs (winch end) and fit directly into standard 3" floor sockets. The CarbonMax winch carries Bison's Forever Lifetime Warranty. Available in six configurations to match your facility's court count, socket situation, and accessory needs: single court complete, single court without sockets, double court complete, double court without sockets, posts and winch only, and court adder. Color-padded complete configurations ship with a Kevlar Competition Net, VB13 Antennas and Boundary Tapes, Rope Ratchet Side Tape Tensioners, Free Full Color Graphic Post Padding, a Free Net Storage Bag, Free Net Rope Cable Covers, a Free Chain Net Height Gauge, and a Bison Exclusive Top Rope Dome. Available in 18 team colors on padded configurations. Ships by truck.
Floor socket installation required: The CarbonMax is a floor-socket competition volleyball system. Installation requires 3" floor sockets set into the gymnasium floor at the correct court positions. The Complete System and Double Court System configurations include 3" Aluminum Floor Inserts. The "Without Sockets", "Posts/Winch Only", and "Court Adder" configurations do not include floor inserts — these are intended for facilities that already have 3" floor sockets in place. If your facility does not have floor sockets, select a Complete or Double Court configuration, or contact our team to discuss installation options before ordering.
3-1/2" Carbon Fiber Post: 0.98" Deflection, Internal Crank Height Adjustment
The CarbonMax post is built from a 3-1/2" carbon fiber outer shell with a 3" diameter aluminum inner tube, finished in a thick gloss resin finish. This composite construction produces a competition post with an approx. post deflection of just 0.98" at 250 lb net tension. At 32 lbs (non-winch end) and 37 lbs (winch end), the post fits standard 3" floor sockets with the 3" Aluminum Floor Insert included on socket-equipped configurations. Floor friendly adjustable feet protect the playing surface around the socket area.
The CarbonMax is the only carbon fiber volleyball system with a crank style internal net height adjustment. The internal crank allows for easy and accurate net fine tuning without external slider mechanisms. Height adjustment is telescoping with permanently engraved net height indicators for precise, repeatable positioning at junior, official women's, and official men's heights.
Forever Lifetime Warranty Winch and Complete Rope System
Net tensioning is handled by Bison's winch, which carries the Forever Lifetime Warranty — the top-tier named winch warranty in the Bison lineup. The bottom rope system includes both an adjustable Velcro bottom rope strap and a bottom rope ratchet tensioner. The Bison Exclusive Top Rope Dome is included on all padded complete configurations.
Choose Your Configuration
The CarbonMax is available in six configurations covering single and double court needs, with or without floor sockets, and with or without the full accessory and padding package. Every configuration uses the same CarbonMax post, winch, and rope system. What changes is the court count, whether floor inserts are included, and whether the Kevlar net, accessories, and full color graphic padding are included.
Single Court Complete System
- Two CarbonMax posts with Forever Lifetime Warranty winch
- 3" Aluminum Floor Inserts included (two)
- Kevlar Competition Net included
- VB13 Antennas and Boundary Tapes included
- Rope Ratchet Side Tape Tensioners included
- Free Full Color Graphic Post Padding included
- Free Net Storage Bag, Net Rope Cable Covers, and Chain Net Height Gauge included
- Free Socket Adapters available on request
- Shipping weight: 150 lbs
- For facilities having floor sockets installed new or replacing existing sockets
Single Court Complete Without Sockets
- Two CarbonMax posts with Forever Lifetime Warranty winch
- Floor inserts NOT included; for facilities with existing 3" floor sockets already installed
- Kevlar Competition Net included
- VB13 Antennas and Boundary Tapes included
- Rope Ratchet Side Tape Tensioners included
- Free Full Color Graphic Post Padding included
- Free Net Storage Bag, Net Rope Cable Covers, and Chain Net Height Gauge included
- Shipping weight: 130 lbs
- Saves on freight cost for facilities that already have 3" sockets in the floor
Double Court System
- Four CarbonMax posts with Forever Lifetime Warranty winches (equipment for two full courts)
- 3" Aluminum Floor Inserts included (four)
- Two Kevlar Competition Nets included
- VB13 Antennas and Boundary Tapes for two courts included
- Rope Ratchet Side Tape Tensioners for two courts included
- Free Full Color Graphic Post Padding for all four posts included
- Free Net Storage Bags, Net Rope Cable Covers, and Chain Net Height Gauges for two courts included
- Shipping weight: 230 lbs
- Best value for facilities outfitting two courts at the same time
Double Court Without Sockets
- Four CarbonMax posts with Forever Lifetime Warranty winches (equipment for two full courts)
- Floor inserts NOT included; for facilities with existing 3" floor sockets already installed on both courts
- Two Kevlar Competition Nets included
- VB13 Antennas and Boundary Tapes for two courts included
- Rope Ratchet Side Tape Tensioners for two courts included
- Free Full Color Graphic Post Padding for all four posts included
- Free Net Storage Bags, Net Rope Cable Covers, and Chain Net Height Gauges for two courts included
- Shipping weight: 210 lbs
Posts and Winch Only (Without Padding)
- Two CarbonMax posts with Forever Lifetime Warranty winches
- No floor inserts, no net, no antennas, no padding, no accessories included
- For facilities that already have a net, antennas, padding, and accessories and only need the posts and winch mechanism
- Shipping weight: 85 lbs
- Lowest-cost entry point for the CarbonMax post and winch platform
Court Adder (Without Padding)
- Adds a second CarbonMax court to a facility that already has one court installed
- Two CarbonMax posts with Forever Lifetime Warranty winches
- No floor inserts, no net, no antennas, no padding, no accessories included
- For facilities expanding from one CarbonMax court to two, where the existing court's net, accessories, and padding will be duplicated separately
- Shipping weight: 85 lbs
- Contact our team to confirm the right accessory additions when ordering a Court Adder
Not sure which configuration to select? The Single Court Complete System is the right starting point for most facilities purchasing their first CarbonMax court with new socket installation. Select Without Sockets if your facility already has 3" floor sockets in the floor and you only need the posts and accessories. Select the Double Court or Double Court Without Sockets package if you are outfitting two courts at the same time. Select Posts and Winch Only if you have an existing net and accessories and only need the CarbonMax post mechanism. Select Court Adder if you are adding a second court to a facility that already has one CarbonMax court installed. Contact our team if you are unsure which configuration matches your situation.

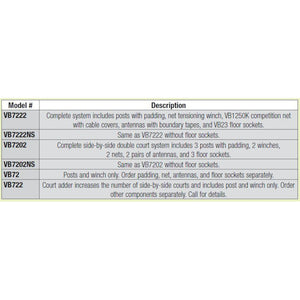

Configuration Comparison at a Glance
| Configuration | Courts | Sockets Included | Net and Accessories | Padding | Ship Weight |
|---|---|---|---|---|---|
| Complete System | Single | Yes | Yes | Free Full Color Graphic | 150 lbs |
| Complete Without Sockets | Single | No | Yes | Free Full Color Graphic | 130 lbs |
| Double Court System | Double | Yes | Yes (x2) | Free Full Color Graphic (x4 posts) | 230 lbs |
| Double Court Without Sockets | Double | No | Yes (x2) | Free Full Color Graphic (x4 posts) | 210 lbs |
| Posts and Winch Only | Single | No | No | No | 85 lbs |
| Court Adder | Single (adds to existing) | No | No | No | 85 lbs |
What Is Included on Complete Configurations
All padded complete configurations (Single Court Complete, Single Court Without Sockets, Double Court System, Double Court Without Sockets) include the following as standard on every court in the package:
- CarbonMax posts (3-1/2" carbon fiber outer, 3" aluminum inner tube, thick gloss resin finish)
- Forever Lifetime Warranty Winch
- Bison Exclusive Top Rope Dome
- Adjustable Velcro bottom rope strap
- Bottom Rope Ratchet Tensioner
- Floor friendly adjustable feet
- 3" Aluminum Floor Insert (socket-included configurations only)
- Kevlar Competition Net
- VB13 Antennas and Boundary Tapes
- Rope Ratchet Side Tape Tensioners
- Free Full Color Graphic Post Padding
- Free Net Storage Bag
- Free Net Rope Cable Covers
- Free Chain Net Height Gauge
- Free Socket Adapters (available on request, single court configurations)
Free Full Color Graphic Post Padding: All complete CarbonMax configurations include free full color graphic post padding, allowing facilities to reproduce school or club logos, mascots, and multi-color designs on the post pads at no additional charge. Select your color at checkout and contact our team to confirm your graphic details when placing your order.
Available in 18 Team Colors
Color selection applies to padded complete configurations. Select your color at checkout and refer to the color chart on the product page to confirm the exact shade. The Posts and Winch Only and Court Adder configurations do not include padding and do not require a color selection.
Black Brown Burnt Orange Cardinal Columbia Blue Dark Royal Forest Green Gold Gray Kelly Green Maroon Navy Orange Pink Purple Royal Scarlet Vegas Gold
Warranty
The CarbonMax winch carries Bison's Forever Lifetime Warranty. All Bison products are warranted against manufacturing defects at the time of delivery. Where listed as limited, warranties cover damage or failure that occurs during normal or intended use, defined as activity necessary for participation in the sport for which the equipment is designed. All painted items carry a 1-year limited warranty on coating. See the "Warranties" tab for complete details on what is included and excluded.
By the Numbers
- System type: Floor-socket competition volleyball net system
- Post material: 3-1/2" carbon fiber outer shell with 3" diameter aluminum inner tube, thick gloss resin finish
- Post weight: 32 lbs (non-winch end) / 37 lbs (winch end)
- Post deflection: 0.98" at 250 lb net tension
- Height adjustment: Internal crank style telescoping; permanently engraved indicators
- Winch warranty: Forever Lifetime Warranty
- Bottom rope system: Adjustable Velcro bottom rope strap plus bottom rope ratchet tensioner
- Top rope: Bison Exclusive Top Rope Dome (complete configurations)
- Floor socket required: Yes; 3" floor sockets required
- Floor inserts included: Yes on Complete and Double Court configurations; not included on Without Sockets, Posts/Winch Only, or Court Adder
- Configurations available: Single Court Complete (150 lbs), Single Court Without Sockets (130 lbs), Double Court System (230 lbs), Double Court Without Sockets (210 lbs), Posts and Winch Only (85 lbs), Court Adder (85 lbs)
- Available colors: 18 team colors (padded complete configurations)
- Shipping: Ships by truck
Who Is This System For?
- Competition gymnasiums with existing or new 3" floor sockets that require the lowest post deflection available in the carbon fiber class; the CarbonMax's 0.98" deflection at 250 lb net tension and internal crank height adjustment make it the precision competition choice for facilities where net rigidity and fine-tuned height control are the priority
- Facilities installing new floor sockets should select a Complete or Double Court System configuration, which includes the 3" Aluminum Floor Inserts needed for the initial installation
- Facilities with existing 3" floor sockets already in place should select a Without Sockets configuration to avoid paying to ship floor inserts they do not need, reducing both cost and shipping weight
- Facilities outfitting two courts at the same time should select the Double Court System or Double Court Without Sockets package, which covers four posts, two nets, two full accessory sets, and free full color graphic padding for all four posts in a single order
- Facilities that already have a CarbonMax court and want to add a second should select the Court Adder configuration and contact our team to confirm the right accessory additions to complete the second court
- Programs that need only the CarbonMax post and winch and already have a net, antennas, and padding should select Posts and Winch Only, which provides the full CarbonMax post mechanism at the lowest configuration price point
About Bison
Bison has been manufacturing sports equipment for gymnasiums, courts, and athletic facilities since 1980. The CarbonMax is Bison's flagship carbon fiber competition volleyball system, combining the only internal crank style net height adjustment in the carbon fiber category with a 0.98" post deflection at 250 lb tension and a Forever Lifetime Warranty Winch across six configurations from a single court posts-only package through a fully equipped double court system. As an authorized Bison dealer, Top Sports Tech provides direct expert support, competitive pricing, and logistics coordination on every CarbonMax order. Our team can help you confirm floor socket compatibility, select the right configuration for your court count and installation situation, and coordinate truck delivery.
Sources: Bison Inc.: https://bisoninc.com | FIVB Volleyball Rules: https://www.fivb.com/en/volleyball/thegame_volleyball/rules
TECH SPECS
- Weight: 120 lbs
- Color: Black, Brown, Burnt Orange, Cardinal, Columbia Blue, Dark Royal, Forest Green, Gold, Gray, Kelly Green, Maroon, Navy, Orange, Pink, Purple, Royal, Scarlet, Vegas Gold
- Class: truck
